Ricambi Robot Dolphin Zenit 20 Pulitore Piscina

ID: 28514

SONO DISPONIBILI TUTTI I RICAMBI
Colori secondo disponibilità





Per assistenza e oridini contattaci













Di seguito trovate tutti i ricambi:































001		Kit Options
. 001(1)		9995672BL-ASSY		Power Supply Timer+ble
. 001(1old)		9995670-ASSY		Power Supply Diagnostic

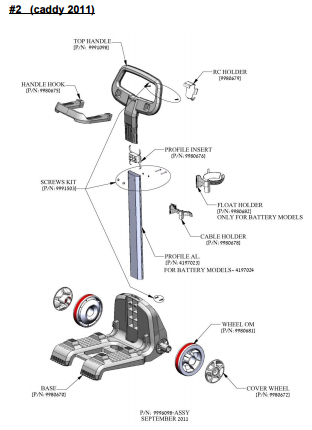

. 001(2)		9996098-ASSY		Caddy 2011
01		99957046-ASSY		Handle Assy Zenit 20/30
02		99807054		Impeller Cover For Mtc8 L.Blue
03		9980707		Rear Cover Pulit E90
04		9980706		Front Cover Pulit E90
05		99952089-ASSY		Outer Casing Zenit 20/30
06		9980712		Side Panel R For Pulit 2010
07		9980713		Side Panel L For Pulit 2010
08		9980880		Support For Cable 2010
09		9995266		Black Impeller+screw Dc
10		9991044-ASSY		Impeller Protector Assy
11		9991074-ASSY		Float+house R For Mu Pulit Kit
12		Kit Options
. 12(01)		9995266		Black Impeller+screw Dc
. 12(02)		9991044-ASSY		Impeller Protector Assy
. 12(03)		9991273		Kit Connessione Cavo
. 12(04)		5588902		Impeller Motor Holder 2
. 12(05)		9982332		Cable Holder Db
. 12(06)		9980726		Mbu Cover Locker Length Side
. 12(07)		9980727		Mbu Cover Locker Short Side
. 12(08)		9991217		Mbu Cover Diag/Dyn 2010 Assy
. 12(09)		5890051LF		Cable Mbu 2010
. 12(10)		3864202		Seal 202x4 Mbu 2010
. 12(11)		3862503		O Ring Tenuta 25x3 Motore Pompa
. 12(12)		5583323		O Ring Tenuta 32x3 Motore Pompa
. 12(13)		9991218		Impeller Motor 2010 Assy
. 12(14)		9995009		Electronic Card Dyn 2010 Assy
. 12(15)		5588900		Drive Motor Holder
. 12(16)		4850010		Dessicating Bag
. 12(17)		3862119		Seal Oring 2-119 D.M
. 12(18)		3861902		Seal Oring 19x2 D.M
. 12(19)		9991219		Drive Motor 2010 Assy
. 12(20)		9980723		Mbu Box Dyn 2010
. 12(A)		3379440-A		Vite Ka50x12 A2 Wb1412
. 12(B)		3379440-A		Vite Ka50x12 A2 Wb1412
. 12(C)		3389208-A		Screw Zp Wn1412 Ka30x08
. 12(MU1)		9995382-ASSY		Mu Dyn New
. 12(MU2)		9995382-EX		Mu Dyn Ex
13		Kit Options
. 13(1)		9995873-DIY		Cable And Swv Diy 18m Dyn M4/5
. 13(1old)		9995862-DIY		Cable And Swv Diy 18m Diag M4
. 13(2)		9995791-DIY		Cable Swv Dyn 1.2m' Diy
. 13(2old)		9995793-DIY		Cable Swv Diag 1.2m' Diy
14		9982332		Cable Holder Db
15		9991075-ASSY		Float Front+rear For Pulit Kit
16		Kit Options
. 16(02)		9991431-ASSY		Disposable Filter - Kit Of 10
. 16(03)		9980731		Cartridge Locking Hook
. 16(04)		9980753		Filter Kit Locking Adaptor
. 16(05)		9991433-ASSY		Spring Cartridge Filter Kit Of 4
. 16(06)		9980733		Filter And Cartridge Holder
. 16(07)		9991432-ASSY		Ultra Fine Cart. Filter Kit Of 4
. 16(08)		9980891		Non Return Flap 2010
17		9980702		Body For Pulit 2010
18		9985006		Track - Timing Track Grey
19		9980741		Brush Supporter 2010
20		99955956-ASSY		Wheel Assy For Tim.Track-Dyn Db
. 20(01)		9982275		Cork For Inner Wheel Tube D.Basi
. 20(02)		3884073-ASSY		Diag. Basic -Wheel Bearing
. 20(03)		3885000		Diag.Basic Stopper Ring
. 20(04)		6101912		Pvc Tube For Dyn.Tt Wheel Assy
. 20(05)		6101914		Diag. Basic - Inner Wheel Tube
21		Kit Options
. 21(01)		6101635		Brush Pvc Dyn Grey
. 21(02)		6101656		Brush Pvc Dyn Grey Cb
. 21(03)		6101611		Brush Wb Ring For Cb
. 21(04)		9995560-ASSY		Brush Wb - Dyn - Pair
. 21(05)		99955340-ASSY		Wheel Assy Dyn Basic Cb Grey
22		3865005		D Type Adaptor
23		3884997		Guide Wheel
24		3883645		Pulley For Flat Shaft - Tt
25		9991046-ASSY		Diaphragma 2010 - Pair
26		9980700		Bottom Cover 2010

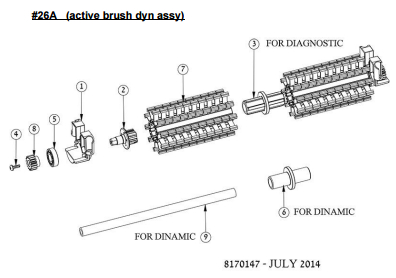

26A		9995541-ASSY		Active Brush Dyn Assy
. 26A(01)		9980737		Bearing Holder For Active Brush
. 26A(02)		9980759		Poligon Spindel
. 26A(03)		9980757		Brush Tube Connector Diag
. 26A(04)		3379440-A		Vite Ka50x12 A2 Wb1412
. 26A(05)		5585177		Bearing 6001 Bnl
. 26A(06)		9980756		Brush Tube Connector Dyn
. 26A(07)		9980736		Active Brush
. 26A(08)		9980742		Spur Gear 16
. 26A(09)		6101922		Pvc Support For Active Brush
27		9991043-ASSY		Gear For Active Brush Assy
28		9991073-ASSY		Float+house L For Mu Pulit Kit
29		5000009		Spina Amphenol
32		9991273		Kit Connessione Cavo
. 32(01)		9985048		Cable Conn.Three Pin
. 32(02)		1811404		Cable Connector
. 32(03)		9985027		Plastic Washer 7mm X 2mm
. 32(04)		3861002		Rk Ring For Cable Conn.
. 32(05)		9980025		Washer-Inside Dia. 13mm
. 32(06)		9980728		Nut For Mbu Terminal 2010
A		3379720-A		Screw Ka50x20 Wn1412
B		3379440-A		Vite Ka50x12 A2 Wb1412

Dolphin Maytronics


Made in EU
Materiale: vendita
