Ricambi Robot Dolphin Thunder 10 Pulitore Piscina fondo

ID: 28505

SONO DISPONIBILI TUTTI I RICAMBI
Colori secondo disponibilità





Per assistenza e ordini contattaci

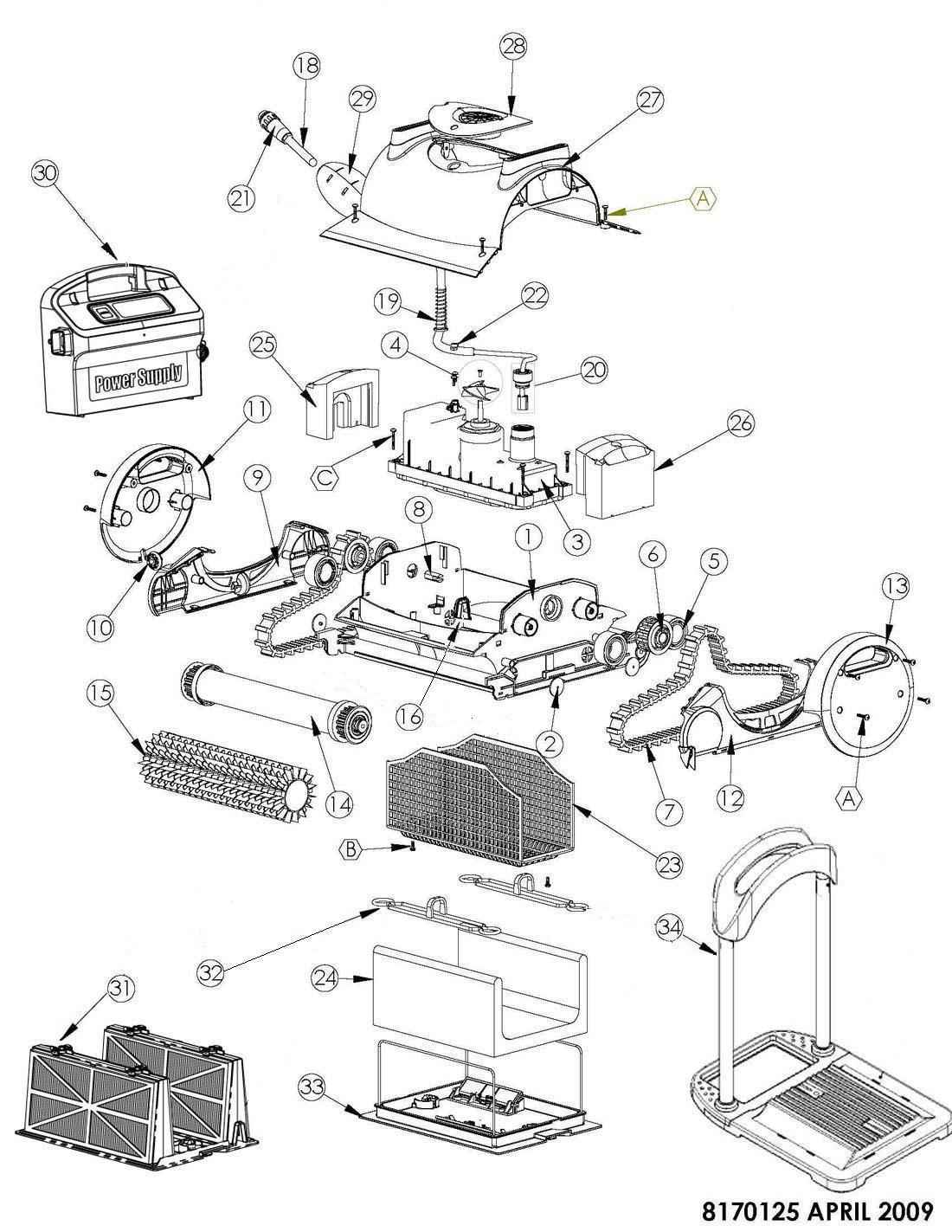

Di seguito trovate tutti i ricambi:























01		9980630		Frame
02		9980220		Db Non Return Diafragm
03		Kit Options
. 03(01)		99953015-ASSY		Mu Apogon Bc 3h New
. 03(02)		99953018-EX		Mu Apogon Bc 3h Ex
04		9995266		Black Impeller+screw Dc
05		3884997		Guide Wheel
06		3883645		Pulley For Flat Shaft - Tt
07		9985006		Track - Timing Track Grey
08		3865005		D Type Adaptor
09		99806314		Side Panel Pulley Mbc5 White
10		9991085-ASSY		Wheel For Side Panel Assy
11		9991066		Side Cover Pulley Thunder 10
12		99806264		Side Panel Over Mold Mcc5 White
13		9991065		Side Cover Thunder 10
14		99955951-ASSY		Diag. Basic - Wheel Tube Assy
. 14(01)		6101914		Diag. Basic - Inner Wheel Tube
. 14(02)		6101911		Cilindro Per Basic
. 14(03)		3885000		Diag.Basic Stopper Ring
. 14(04)		3884073-ASSY		Diag. Basic -Wheel Bearing
. 14(05)		9982275		Cork For Inner Wheel Tube D.Basi
15		Kit Options
. 15(01)		6101602		Brush Pvc Diag Grey
. 15(02)		6101641		Brush Pvc Diag Grey Cb
. 15(03)		6101611		Brush Wb Ring For Cb
. 15(04)		6101610		Brush Wb Diagnostic
16		9985448		Cartridge Cork
18		Kit Options
. 18(01)		9995851-DIY		Cable Diag Basic 18m Diy
. 18(02)		9995861-DIY		Cable And Swv Diy 18m Diag Basic
. 18(03)		9995793-RC-DIY		Cable Swv Diag 1.2m' Basic Diy
19		3917033		Spring For Cable 3 Wires
20		9991279		Retrofit For Cable Conn.-3 Pin
. 20(01)		9985048		Cable Conn.Three Pin
. 20(02)		1811404		Cable Connector
. 20(03)		9985027		Plastic Washer 7mm X 2mm
. 20(04)		3861002		Rk Ring For Cable Conn.
. 20(05)		9980025		Washer-Inside Dia. 13mm
. 20(06)		9980041		Screw - Bolt Mu Cable Connector
21		5000009		Spina Amphenol
22		9982332		Cable Holder Db
23		9980627		Net Mcc5
24		99954307-ASSY		Filter Bag Db
25		6250935		Float For Mbu Apogon Bc - 300cc
26		6250936		Float For Mbu Apogon Bc - 500cc
27		99951909		Outer Casing - Thunder 10
28		99806254		Impeller Cover Mmc5 White
29		99960081		Float Assy D.Basic Float Blue
30		9995670-ASSY		Power Supply Diagnostic
. 30(01)		5020012		Amph. Socket Cover For P.S
. 30(02)		5020011		Amph. Socket For P.S
. 30(03)		5898411LF		Cable Switching Power Supply Eu
. 30(A)		3379212		Screw Ka30x12 Wn1412 A2
31		9991414-ASSY		Cartridge Assy For Mtc5\6 Mcc5\6
32		9981430		Filter Bag Clip
33		99919116		Bottom Lid Assy Db & Support
. 33(01)		5583076		Filter Bag Support-D.Basic
. 33(02)		9982270		Diag.Basic - Bottom Lid
. 33(03)		9982330		Bottom Lid Latch Db
. 33(04)		9982331		Bottom Lid Spring Db
. 33(05)		9985441		Non Return Flap For New Bl
. 33(06)		9985442		Base For Non Return Flap New Bl
. 33(07)		3917014		Bottom Lid Spring
. 33(A)		3303008-A		Screw Ka30x8 Wn1412 A2
34		9991007		Db Stand
. 34(01)		9986041		Base Stand For Moby
. 34(02)		9986042		P.S Base For Moby Stand
. 34(02B)		9986044		P.S 2010 Base For Moby Stand
. 34(03)		7300305		Aluminium Tube For Caddy
. 34(04)		9980029		Plastic Spring Latch For Stand
. 34(05)		9986043		Cable Holder For Moby Stand
. 34(A)		3379440-A		Vite Ka50x12 A2 Wb1412
A		3379720-A		Screw Ka50x20 Wn1412
B		3379440-A		Vite Ka50x12 A2 Wb1412
C		3305030-A		Screw Ka50x30

Dolphin Maytronics


Made in EU
Materiale: vendita
